SAGA KLIPS ACCESSORIES

LED TECHNOLOGY, CURTAIN GLIDER, CURTAIN CLAMPS, PATTERNS AND MUCH MORE ...

Curtain rail, curtain rail and light combined by Tp-Flex with countless possibilities to make your rooms modern and individual.

We offer a complete product and system range for the successful realization of your project.

SAGA KLIPS

ACCESSORIES

Everything about light and curtain, LED technology, curtain gliders, threading aids, sample cases ...

 SAGA KLIPS CURTAIN GLIDER + IMPLENTING HELP / CURTAIN SLAUGHTER

Can be combined with SAGA KLIPS SYSTEM RUN: SAGA KLIPS curtain run white + anthracite | SAGA KLIPS "STAR" curtain run "The illuminated curtain track"

SAGA KLIPS CURTAIN GLIDER

System curtain glider suitable for curtain run SK-Z0001, lift lock suitable

Item Nr: SKZ-0008

SAGA KLIPS IMPLEMENTING HELP / WHITE (to clip in)

Item Nr:  SK-Z0009

For the Saga Klips threading aid and lift lock you need no tools, suitable for all standard lift rods. Use matching curtain gliders SKZ-00008. In applications without a lift lock, there are a variety of other curtain glides that can be used.

SAGA KLIPS IMPLEMENTING HELP / ANTHRACITE (to clip in)

Item Nr:  SK-Z0010

For the Saga Klips threading aid and lift lock you need no tools, suitable for all standard lift rods. Use matching curtain gliders SKZ-00008. In applications without a lift lock, there are a variety of other curtain glides that can be used.

 SAGA KLIPS LED BANDS

Can be combined with SAGA KLIPS TP-FLEX + SAGA KLIPS GIPS PANELS

SAGA KLIPS "PROFI" LED BAND 24V WARM WHITE / 120 LED'S / METER, 14.4 Watt / M

LED-Band passend zu SAGA KLIPS TP-FLEX + SAGA KLIPS GIPS PANEELE

Item Nr: SKZ-0020
Technical description, details
LED tape 24V Warm white 2700-3000k, width 8-10 mm, 120 LED's / meter 14.4 Watt / M All our LED Stripes have soldered 7-10 cm long open connection cables at both ends. Manufacturer Mextronic | Light color: warm white (3000K) | Number of LEDs per meter: 120 | Lumen / LED: about 14 | Length: 500cm | Total current up to: 8400 lumens | Color rendering: 92 | Beam angle: 120 degrees | Operating temperature: -20 ° C to 50 ° C | Working voltage: 24 V DC | Working current / meter max to: 600 mA | total working current (max) up to: 3A | Power (W) per meter to: 14.4 | total power (W) to: 72 | Width: 8 mm | Height: 2 mm | Luminous efficacy: 117 lm / W | EEK: A | Protection class: IP 20 | divisible: 50 to 52 mm | Lifespan up to: 40000 hours | dimmable: yes (PWM) | Color of the board: white

SAGA KLIPS "STAR" LED BAND 24V WARM WHITE / 300 LED'S / METER, 18 WATTS / M

LED-Band suitable for SAGA KLIPS TP-FLEX + SAGA KLIPS "STAR" LIGHTS

Item Nr: SKZ-0021

Technical description, details
LED-Band "STAR" 24V Warmwhite 2700-3000k, width 8-10 mm, 300 LED's / meter 18 Watt / M All our LED Stripes have soldered 7-10 cm long open connection cables at both ends. Manufacturer Mextronic | Light color: warm white (2700K) | Number of LEDs per meter: 300 | Lumen / LED: 4.2 | Length: 500cm | Total current up to: 6300 lumens | Color rendering: 90 | Beam angle: 120 degrees | Operating temperature: -20 ° C to 50 ° C | Working voltage: 24 V DC | Working current / meter max. Up to: 750 mA | total working current (max) up to: 3.75 A | Power (W) per meter to: 18 | total power (W) to: 90 | Width: 8 mm | Height: 2 mm | Luminous efficacy: 70 lm / W | EEK: A | Protection class: IP 20 | divisible: 19 to 21 mm | Lifespan up to: 35000 hours | dimmable: yes (PWM) | Color of the board: white

SAGA KLIPS RGB LED BAND / 72 LED / METER, 24V, DARKED + WHITE, 4000K

LED tape suitable for SAGA KLIPS TP-FLEX + SAGA KLIPS GIPS PANELS

Item Nr: SKZ-0022

Technical description, details
LED-Band RGB 24V colored + white 4000k, width 8-10 mm, 72 LED's / meter 18 Watt / M All our LED Stripes have soldered 7-10 cm long open connection cables at both ends. Manufacturer Mextronic | Light color: RGB + neutral white (4000K) | Number of LEDs per meter: 72 | Lumen / LED: approx. 8 | Length: 500cm | Total current up to: 2880 lumens | Color rendering: 82 | Beam angle: 120 degrees | Operating temperature: -20 ° C to 50 ° C | Working voltage: 24 V DC | Working current / meter max. Up to: 750 mA | total working current (max) up to: 3.75 A | Power (W) per meter to: 18 | total power (W) to: 90 | Width: 10 mm | Height: 2 mm | Luminous efficacy: 32 lm / W | EEK: A | Protection class: IP 20 | divisible: 165 to 167 mm | Lifespan up to: 40000 hours | dimmable: yes (PWM) | Color of the board: white

 SAGA KLIPS TRANSFORMERS

combinable/compatible with SAGA KLIPS LED BANDS

TRAFO, SWITCHGEAR FOR LED AND LIGHTING APPLICATIONS / 24V, 152 WATT

Universal transformer

Item Nr: SKZ-0030

Technical description, details

Mean Well LPV 24V 152 Watt, switching power supply for LED and lighting applications | Universal input | Aluminum housing IP65 | Overload protection through current limitation, auto recovery | protected against short circuit, overload, overvoltage | for LED and lighting applications | UL 1310 Class 2 | Overcurrent shutdown adjustable via internal potentiometer | Output voltage adjustable via internal potentiometer | EN61000-3-2, Class C, EN55015, EN61347-1, EN31347-2-13 | Allgemeines: Type: adjustable, Model designation: Switch mode power supply, Input 90-295 V AC / 127-417 V DC, Output 24 V DC, Design CLG, Overvoltage protection: yes, Degree of protection IP65, Electrical values current 6.3 A, Power 151 W, Efficiency 88 %, Inrush current 65 A, ripple; Noise 150 mV, approval UL1310 Class 2, overload protection: yes, circuit breaker proof: yes, length: 222 mm - width 68 mm - height 39 mm

TRAFO, SWITCHING POWER SUPPLY FOR LED AND LIGHTING APPLICATIONS / 24V, 100 WATTS

Universal transformer

Item Nr: SKZ-0031

Technical description, details

Mean Well LPV 24V 100 Watt, switching power supply for LED and lighting applications | Universal input | Overload protection by switching off, auto recovery | protected against short circuit, overload, overvoltage | IP 67, for indoor and outdoor applications | fixed output voltage | Model name: Switch mode power supply, Input voltage range: 90 ... 264V (47 ... 64Hz) / 127 ... 370V DC, Output: 24V DC, Power: 0 - 4.2A, Power: 100.8W, Efficiency: 88%, inrush current 75 A, ripple; Noise 150 mV, Approval UL1310 Class 2, Overload protection: 110 ... 150%, Isolation voltage input to output: 3000V AC, Operating temperature range: -25 to + 70 ° C, Weight: 630g, Length 190mm, Width 52mm, Height 37 mm | For use only in equipment having a primary use other than lighting, e.g. Copiers, overhead and slide projectors or for scale and display lighting. Suitable for outdoor and outdoor applications without direct solar radiation (not UV-resistant). Do not immerse in water for more than 30 minutes.

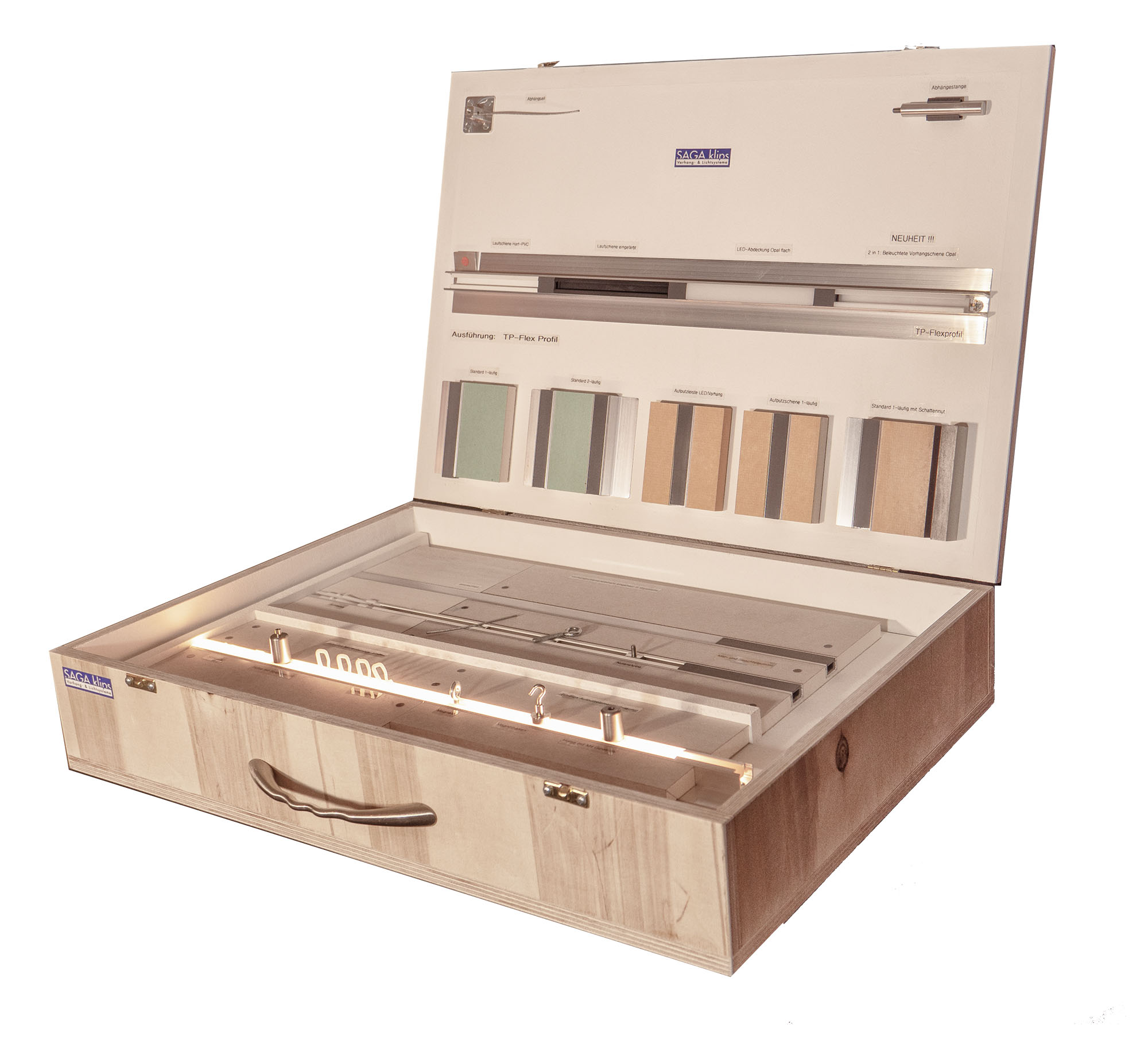

 SAGA KLIPS PATTERN CASE

The perfect solution - SAGA KLIPS MUSTERKOFFER for presentation and sales to your customers.

SAGA KLIPS PATTERN CASE

Item Nr: SK-MUSTKOFF-001

Made of wood with handle, hinged, light button

Contents: TP-Flex loose with accessory inserts, TP-Flex with gypsum strips (surface and surface-mounted version), SAGA gypsum plasterboard, SAGA suspension system, SAGA accessories (Led cover, curtain run, Star curtain run, lift lock, magnets, curtains, glides equipped with the latest and most popular SAGA system and accessories (the design may change over the year).

Patented quality products | Made in Austria

The self-installation solution

The prefabricated plaster panel for quick installation

for clipping into SK TP-Flex + SK GIPS PANELS

Accessories for light curtain
